JELLYFISH
Universal fluorine radiochemistry module
JELLYFISH is a very compact small device mainly developed for universities and PET centres. Its capability is to work with 18F in any form you desire. It’s a great opportunity to introduce electrophilic fluorine chemistry with all the advantages of using a standard preparation of 18F on enriched water target. Furthermore, it offers two ways to prepare the plasma phase via high voltage or via RF source. You can also take advantage of the actual size of the module and simply add it to your existing one.
- Fully automised system to increase reproducibility and to minimise personnel dose intake
- Extend your automation system
- No need of new hot cell
- Separation process based on solid phase extraction (SPE)
- Easy to connect to different systems via capillary
- System driven by PLC and I/O cards, communication with PC via Ethernet cable
- Open access to create programme code suitable for developers
Key features
- Fluidic conversion of F- form to F+ form

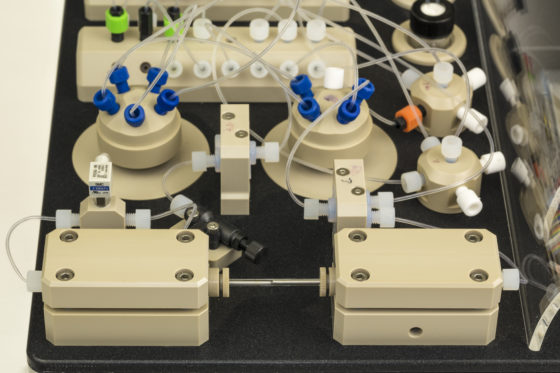

- Two reactors, HV electric discharge chamber, adjustable peek needle valve, PEEK head valves, separation column
- Up to four positions for the uploading of solvents into the first reactor or to the SPE column regarding separation steps
Technical parameters
Module dimensions app.30 x 36 x 13 cm
External power supply 230 VAC / 24 VDC
Inlet for pressure of air / noble gas up to 7 bar
3 GM tubes for high activity measurement
Allows processing of high incoming activities in order of hundreds of GBq
